The MANTIS liquid handler

The MANTIS automated liquid handler is the easy and affordable solution to quickly increase the reproducibility and quality of your research as well as throughput and efficiency of your laboratory. The diaphragm-based chip design is liquid class compatible, easily dispensing aqueous and organic solutions. Additionally, the MANTIS will dispense in any SBS template from 6 to 1536 well plates, and can be easily programmed to dispense to custom designs as needed.

Baca Selengkapnya Minta Penawaran
Produk data dan gambar The MANTIS liquid handler

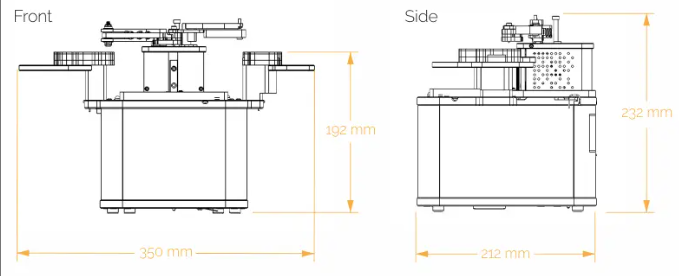

MANTIS Dimensi Fisik

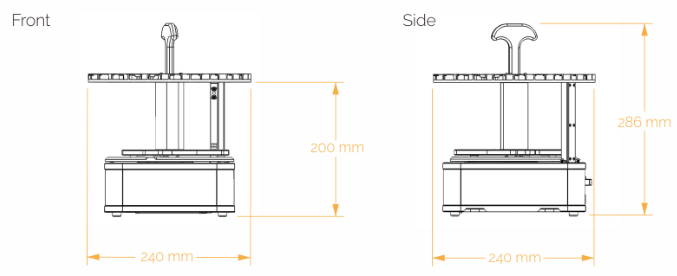

Dimensi LC3

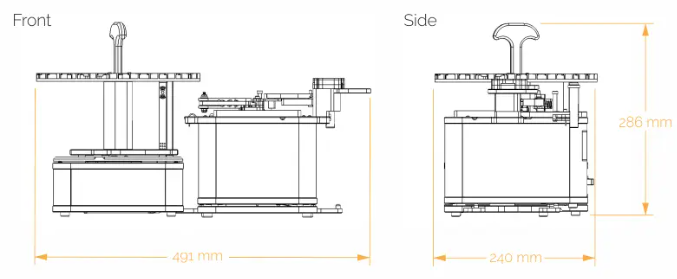

MANTIS dengan LC3 Dimensi

Spesifikasi The MANTIS liquid handler

Specification Product

Computer Specifications

  • Microsoft Windows Vista, 7, 8, or 10; 32- or 64- bit
  • Dual Core x86 or x64 1.5 GHz processor
  • 1 built-in USB port (USB 2.0 recommended, USB 3.0 supported)
  • 4 GB RAM
  • 1 GB Hard Drive space
  • 768 pixels vertical minimum screen resolution (900+ pixels recommended)

Electrical Specifications

  • 110 V - 240 V, 50 Hz - 60 Hz, 50 W typical, 150 W max. Standard or European outlet

Environmental Requirements

  • 4-40 °C ambient temperature
  • 85% or less relative humidity
  • 4,000 m maximum altitude

MANTIS Physical Dimensions

  • Width: 350 mm or 13 25/32” (smaller without ACC or reagent holders)
  • Height: Full Extension: 232 mm or 9 9/64” (not including pipette tip input)
  • Height: No Extension: 192 mm or 7 9/16” (not including pipette tip input)
  • Depth: 212 mm or 8 11/32”
  • Weight: Approx. 5.2 kg (11.5 lbs)

LC3 Dimensions

  • Width: 240 mm or 9 29/64”
  • Height: Full Extension: 286 mm or 11 17/64”
  • Height: No Carousel: 200 mm or 7 7/8” (including RFID antenna)
  • Depth: 240 mm or 9 29/64”

MANTIS with LC3 Dimensions

  • Width: 491 mm or 19 21/64” (MANTIS with LC3)
  • Height: Full Extension: 286 mm or 11 17/64”
  • Depth: 240 mm or 9 29/64”

Benefits:

  • Efficient:  Miniaturize reactions, scale-up through-put, save on reagents and remove pipette tip cost.
  • Reproducible:   Dispense volumes down to 100nL at CV < 3%
  • Versatile:   Easily dispense and normalize reagents and cell culture assays
Brosur The MANTIS liquid handler
Jurnal untuk The MANTIS liquid handler
