autoMACS® Pro Separator
Automated cell isolation with the autoMACS® Pro Separator provides fast and gentle isolation of any cell type. Cells can be automatically isolated from PBMCs, dissociated tissues or directly from whole blood or bone marrow, which makes it ideal for diverse downstream applications, such as flow cytometry, cell-culture assays, or molecular analyses. With true walk-away automated cell separation, reproducible and user-independent results are achievable and certain. Proven in thousands of peer-reviewed publications, the autoMACS Pro is the most trusted automated magnetic cell separation instrument available.
ReadmoreProduct data and images for autoMACS® Pro Separator
View Details

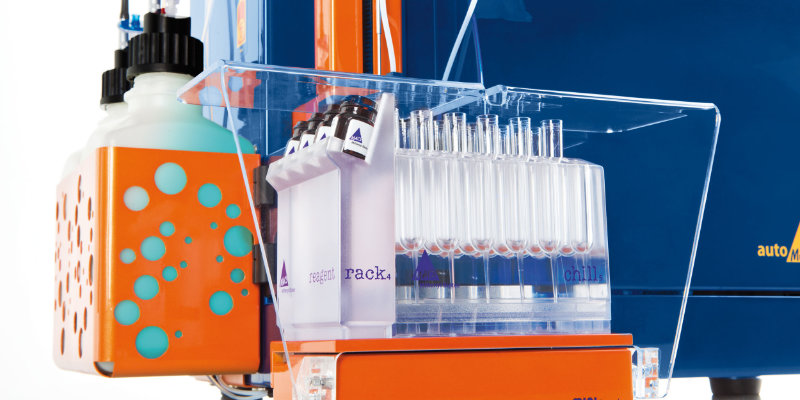

Can be scan up to four reagents can be placed on the Reagent Rack. The appropriate separation program for each reagent is selected automatically
View Details
MACS Chill Racks allow up to 6 samples to be processed in a single run.
View Details

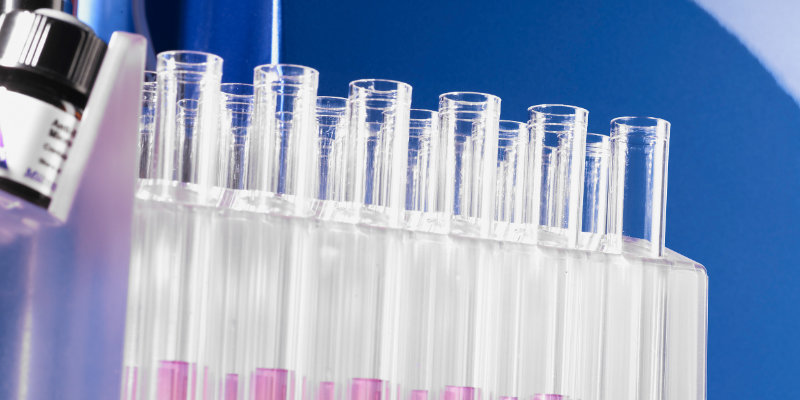

Seamless sampling from 5 mL, 15 mL and 50 mL tubes placed in the appropriate MACS Chill Rack.
View Details

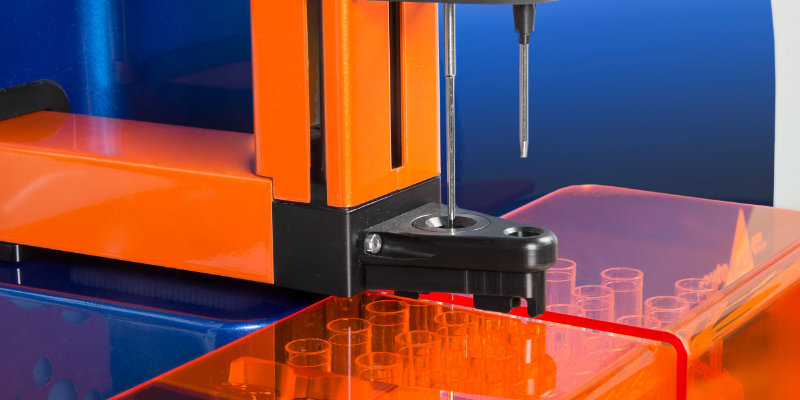

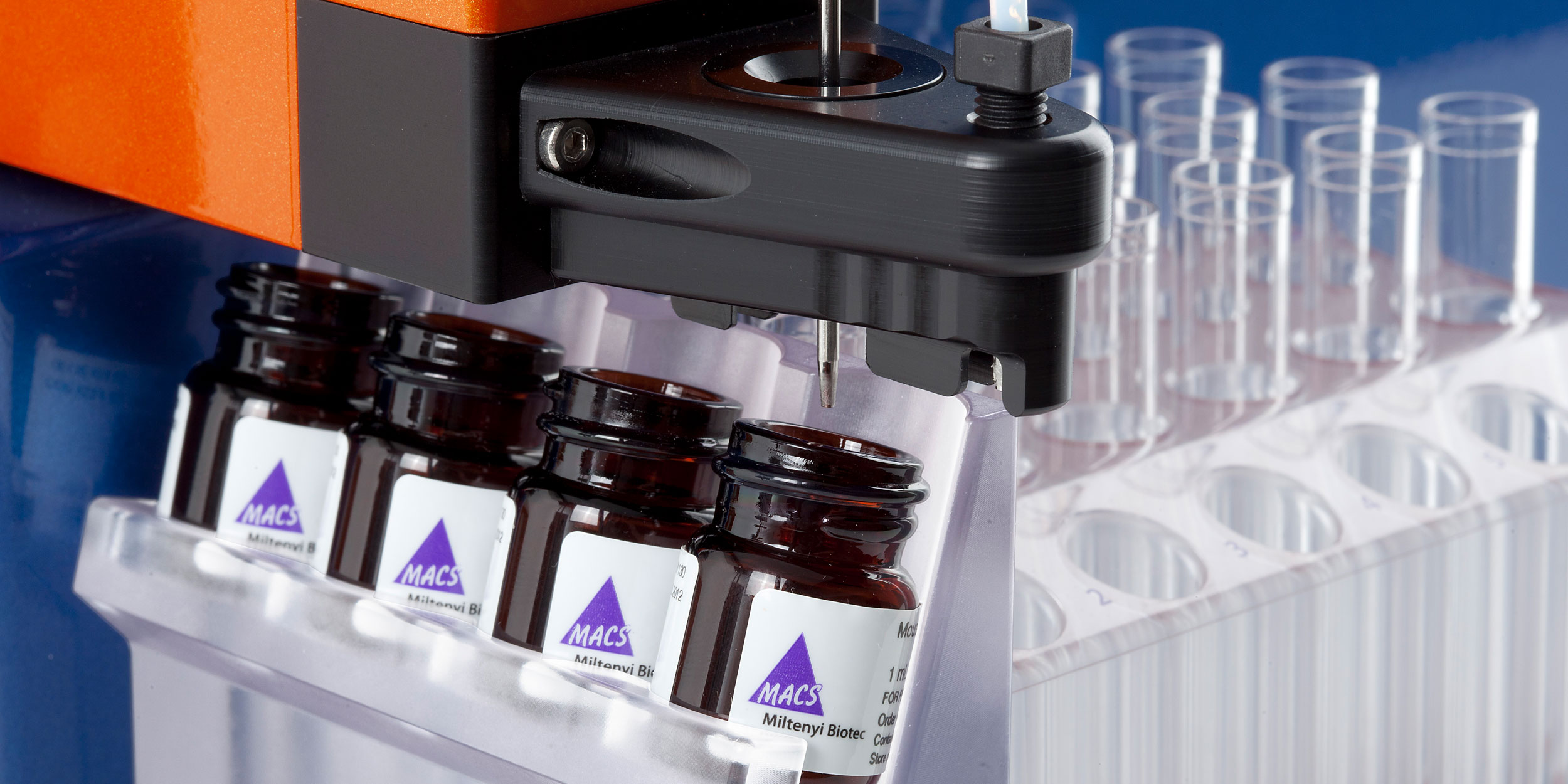

Takes up reagents and samples for autolabeling, sample mixing, and column loading by standardized pipetting.
View Details

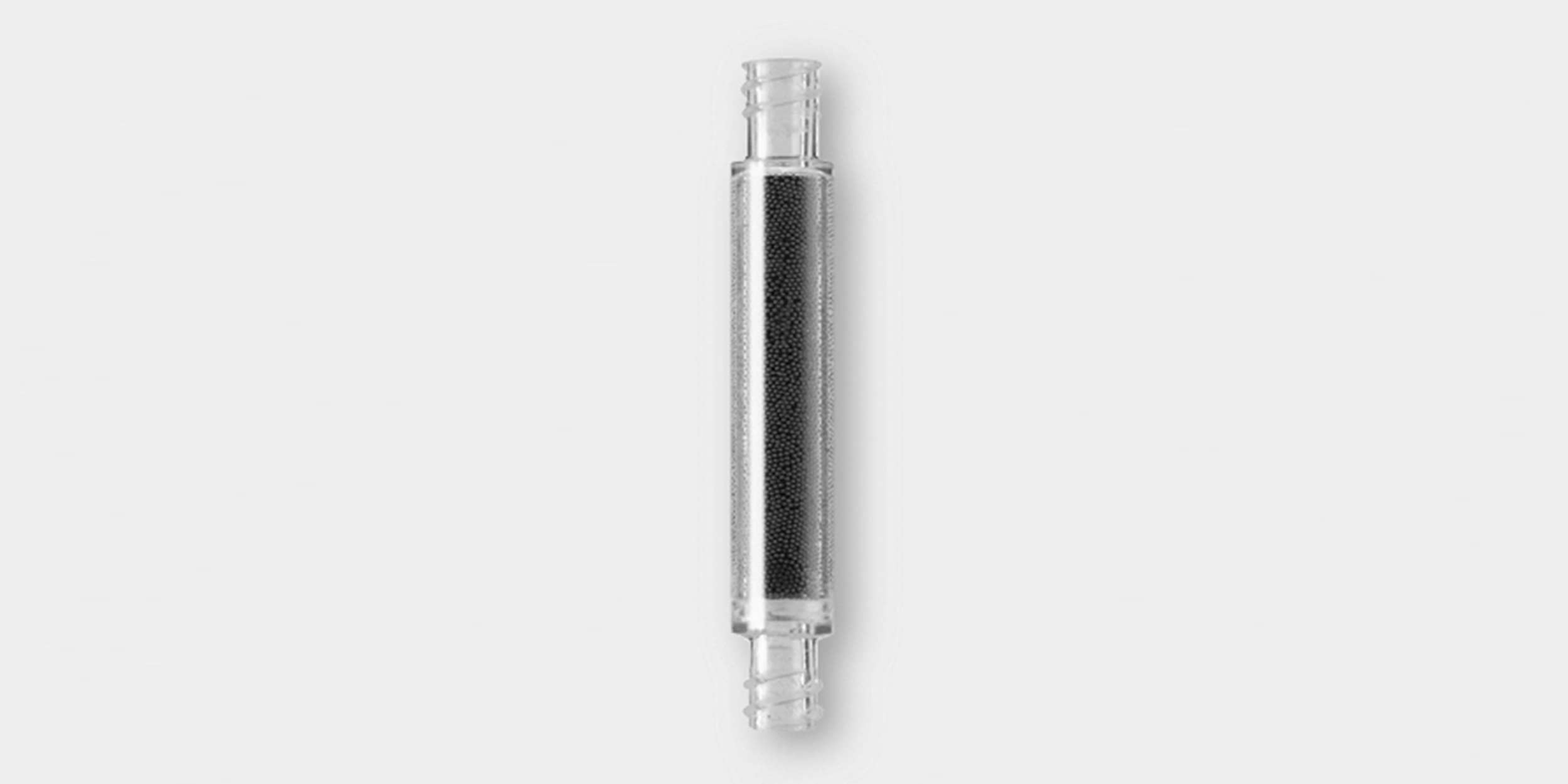

Re-usable autoMACS® column
View Details

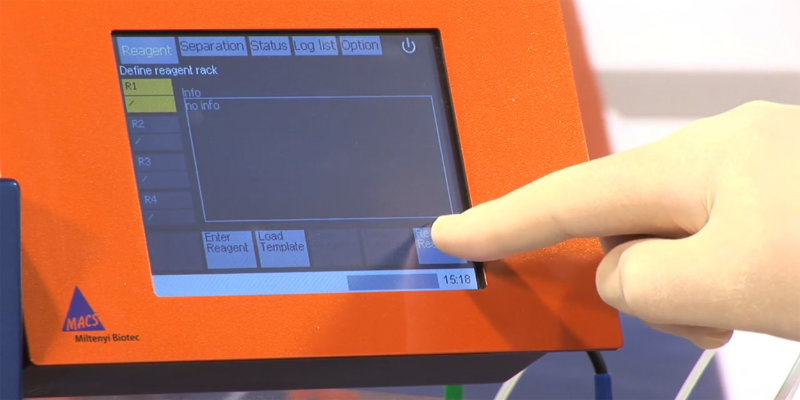

Easy programming of autolabeling, cell separation and washing steps.
Specification for autoMACS® Pro Separator
| Monitoring | Pre-set programs for all MACS® MicroBeads and Isolation Kits ensure accurate sample handling. Sensors constantly monitor the status of the autoMACS® Pro, buffer levels, and column status. This ensures optimal instrument performance and safety of samples and operators. |
| Level of automation | Fully automated |
| Footprint | Without MiniSampler: 605x343 mm (W x D) With MiniSampler: 605x455 mm (W x D) Height: 392.5-454 mm (adjustable touchscreen) It is a benchtop-sized instrument that will easily fit under a common laminar flow hood. |
| Capacity autoMACS Column | - Up to 4 x 109 total cells/sample - Up to 2 x 108 magnetically labeled cells/sample - Up to 15 mL of whole blood |
| Volume | 0.2 mL - 50 mL sample volume depending on MicroBeads used |
Sample Types
- PBMCs
- Whole blood
- Bone marrow
- Single-cell suspensions from dissociated tissue or tumor
- Cultured cells (cell lines and primary cells)
Species
- Human
- Mouse
- Rat
- Non-human primate
- any others are possible with indirect MicroBeads
