MACSQuant Analyzer 10
The MACSQuant Analyzer 10 brings to life the versatility and power required for modern flow cytometry applications. Whether mining for rare cells, analyzing the efficiency of your cell manufacturing process or investigating signaling pathways, you are equipped for the task at hand. With a range of automated features, this flow cytometer lays the foundation for true automation present in all instruments belonging to the MACSQuant Family of flow cytometers.
ReadmoreProduct data and images for MACSQuant Analyzer 10
View Details
Large monitor (15.6") for simple touchscreen operation
View Details

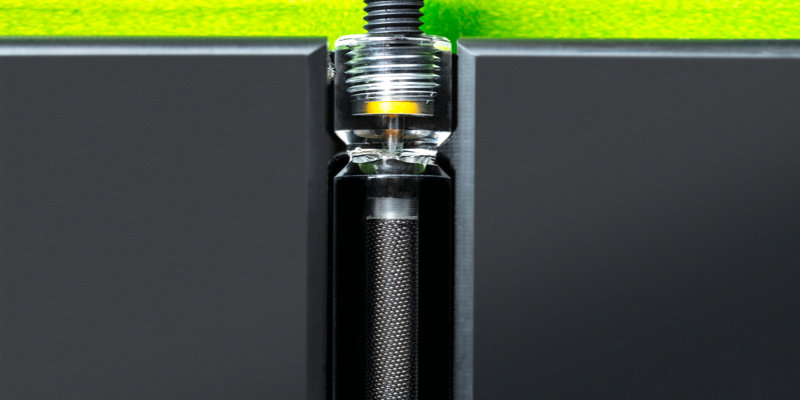

Robotic needle arm; At the heart of sample mixing, processing and autolabeling
View Details

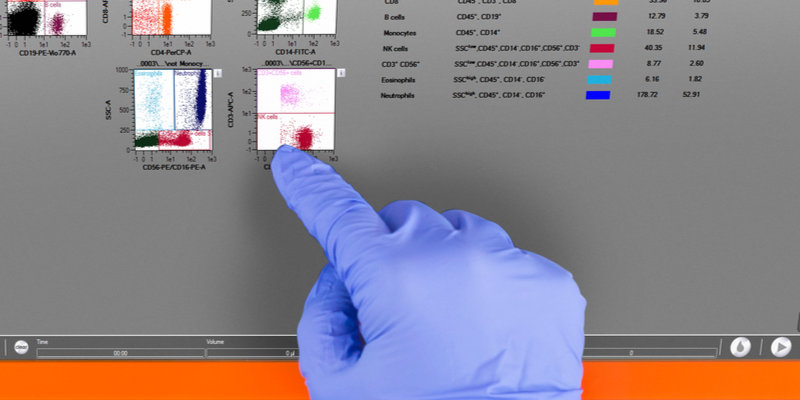

Focus on your cells of interest and fortify your data
View Details

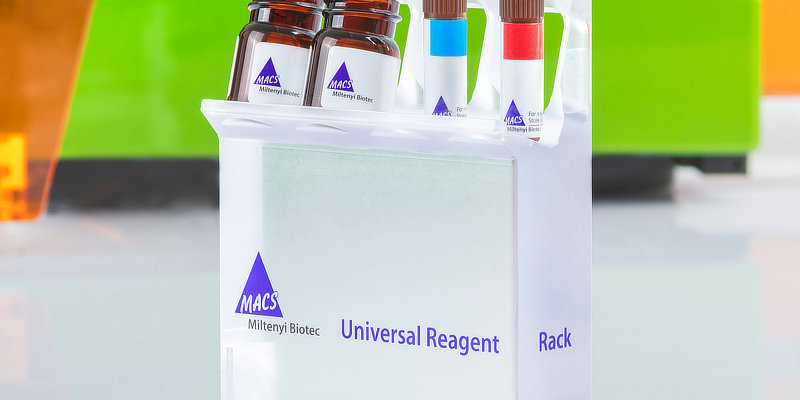

Universal Reagent Rack: Flexible autolabeling options from glass or plastic vials
View Details

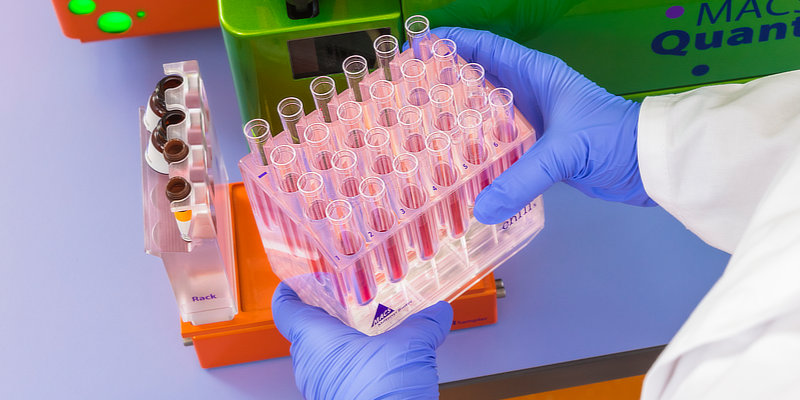

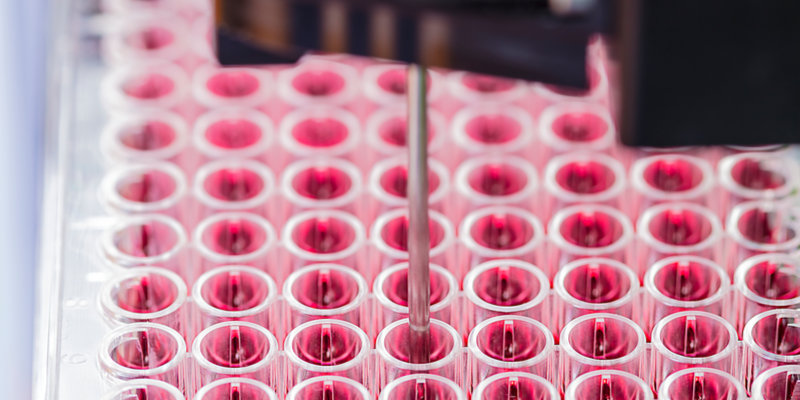

Seamless sampling from single tubes, multiple tubes or 96-well plate
Specification for MACSQuant Analyzer 10
Optics
| Laser excitation | Spatially separated: 405 nm, 40 mW 488 nm, 30 mW 640 nm, 20 mW |
| Emission detectors | FSC: 488/10 nm SSC: 488/10 nm V1: 450/50 nm V2: 525/50 nm B1: 525/50 nm B2: 585/40 nm B3: 655–730 nm B4: 750 nm LP R1: 655–730 nm R2: 750 nm LP |
| Fluorescence sensitivity and resolution | MESFs (CV <5%): FITC <200 PE <100 APC <150 |
| Flow cell dimensions | 200×250 μm |
| Fluorescence detectors | Optimized with spectrally matched PMTs for all channels |
Technical specifications
| Footprint | 385.5 × 284.5 mm (15.18 × 11.2 in) |
| Size (width×depth) | 669 × 400 mm (26.34 × 15.75 in) |
| Height (adjustable touchscreen) | 394–553.5 mm (15.51–21.79 in) |
| Size with miniSampler Plus (width × depth) | 669×500 mm (26.34 × 19.69 in) |
| Weight | 50 kg (110 lbs) |
| Monitor | 15.6" LCD touchscreen |
| Power requirements | 100–240 V~, 50/60 Hz |
| RAM/Mass storage | 8 GB DDR4 (SO-DIMM)/500 GB SSD |
| Ports | 4× USB 2.0 ports, 6× USB 3.0 ports (2 at display), 2× DisplayPort, 2× LAN, DVI, RE-232, Audio |
Performance
| Sample carry-over2,4 | 0.01% |
| Fluorescence performance | 5-decade logarithmic scale (10-2 to 103), displayed in lin, log, or hlog scales |
